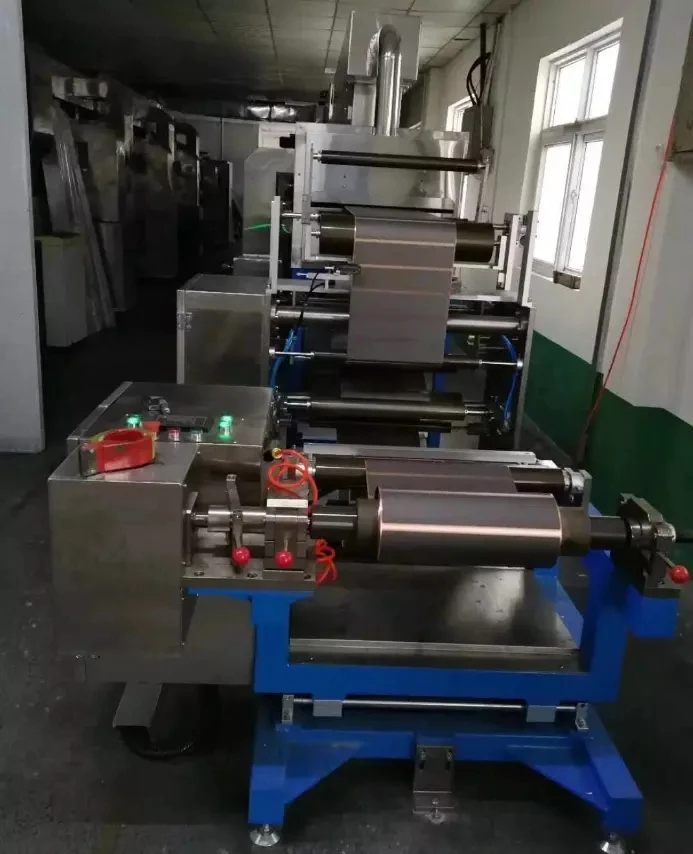

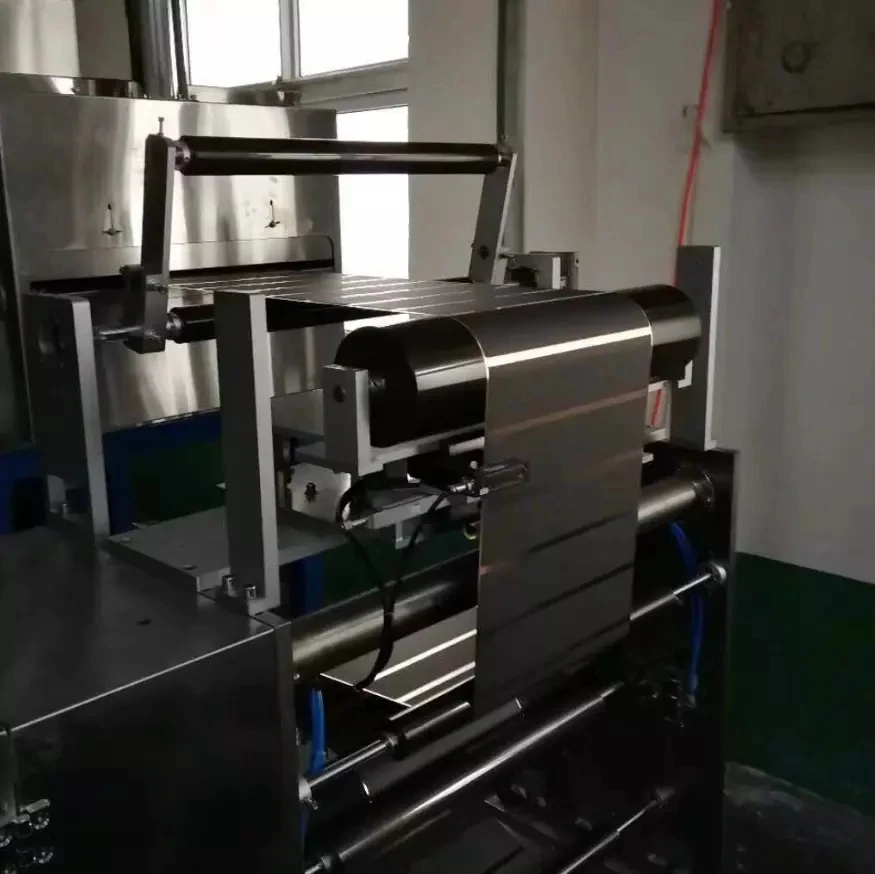

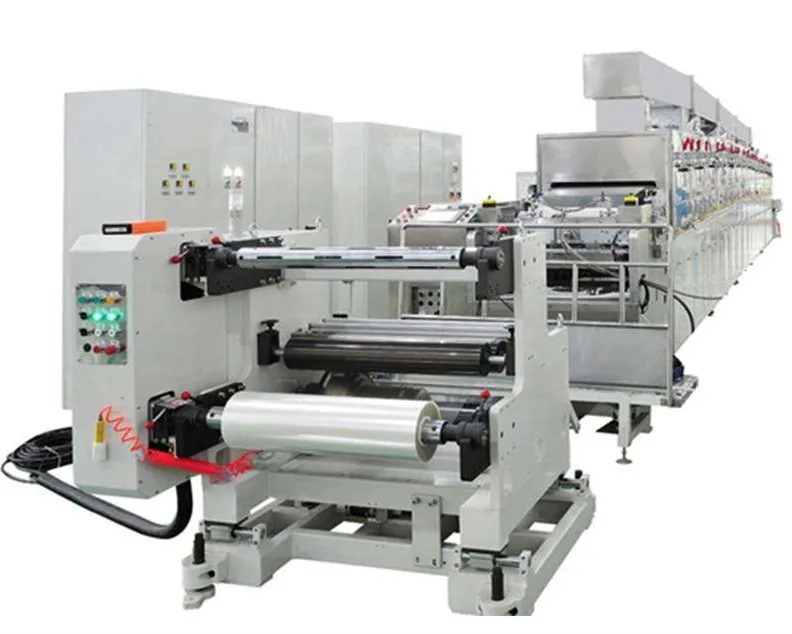

Automatic Roll to Roll Film Electrode Roller Coater Coating Machine For Lithium Battery Production / Making

This is a automatic and faster roll to roll coatingsystem for battery electrode with 15m/minute max coating speed . It is perfect for prototypes of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's utmost convenience.

Model Type	Slot die coater	Reverse comma coater	Separator/Microconcave coating machine
Industrial adaptability	Lithium battery electrode coating		Lithium battery separator coating
Coating method	Continuous coating/gap coating		Continuous coating
Rewinding and unwinding configuration	Single-axis/dual-axis manual roll change, automatic roll change	Single-axis/dual-axis manual roll change, dual-axis automatic roll change	Single-axis/double-axis manual change
Substrate processing	/		Preheat oven / ironing roller (surface leveling)
Heating function	Electric/steam/oil heating
Drying oven configuration	Active roller + suspension oven, length optional	1. Active climbing + passive passing roller, length optional 2. Active climbing + passive passing roller + active downhill, length optional 3. Active climbing + floating oven, length optional	Curved active roller, length optional
Mechanical speed	Coating speed +10%
Coating speed	15-30m/min(it depends on model type)	1-15m/min(it depends on model type)	50m/min 80m/min 100m/min(it depends on model type)
Coating width	500mm/650mm	500mm/600mm/650mm	700mm/900mm/1200mm
Coating thickness	50-150um	60-150um	1-5um
Thickness accuracy	±0.5um(when coating thickness >1um)
Advantages	1.The close cooperation between the feeding system and the control system realizes stable and high-precision coating with a weight error of plus or minus 1%; 2.Stable structure, suitable for mass production; 3.Easy to operate, touch screen interface design; 4.Online area density detection system (optional), online CCD visual inspection system (optional), bad section identification system (optional)	1.The installation structure of steel roller, rubber roller and scraper is simple, which is convenient for maintenance; 2.The control system is convenient and simple to operate, and the touch screen interface is simple and easy to understand; 3.With head and tail thickness adjustment function, automatic closed-loop adjustment of the blade gap, closed-loop tension control system coating length measurement function (optional), front and back alignment system, oven over-temperature protection system, online defect inspection system (optional)	1.The control system is convenient and simple to operate, and the touch screen interface is simple and easy to understand; 2.Swing roller structure + closed-loop tension control system to achieve low tension operation; 3.Treat the unevenness of the substrate through the preheating oven to improve the scope of equipment use; 4.The closed feeding cavity developed and produced by our company has uniform scraping and easy cleaning and replacement.
