Oilfield Shale Shaker
Продвинутая технология контроль энергии и минеральных твердых веществ оборудование для нефтяного поля шейкер

Продвинутая технология контроль энергии и минеральных твердых веществ оборудование для нефтяного поля шейкер

Категория: Oilfield Shale Shaker >>>
Поставщик: BEST,IN,AGENCY

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.70 $*	0.92 $*
Aug-16-2025	0.64 $*	0.96 $*
Jul-16-2025	0.39 $*	0.30 $*
Jun-16-2025	0.80 $*	0.78 $*
May-16-2025	0.4 $*	0.14 $*
Apr-16-2025	0.92 $*	0.22 $*
Mar-16-2025	0.78 $*	0.82 $*
Feb-16-2025	0.9 $*	0.38 $*
Jan-16-2025	0.19 $*	0.28 $*

Характеристики

Product Description

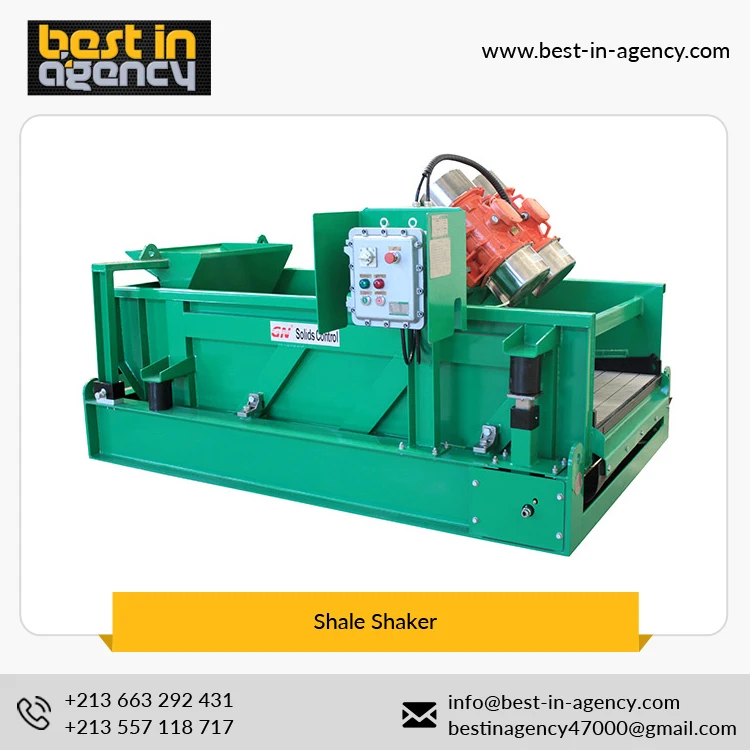

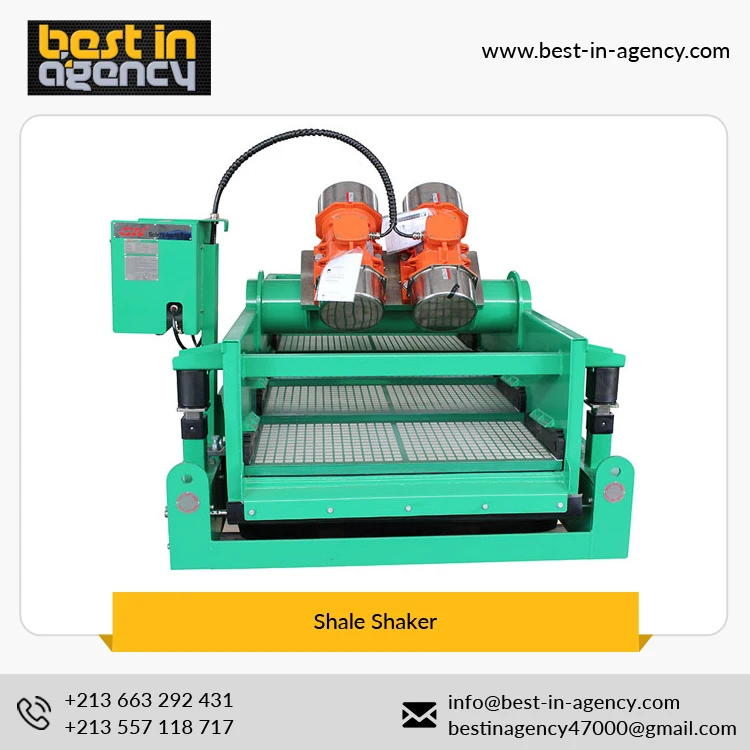

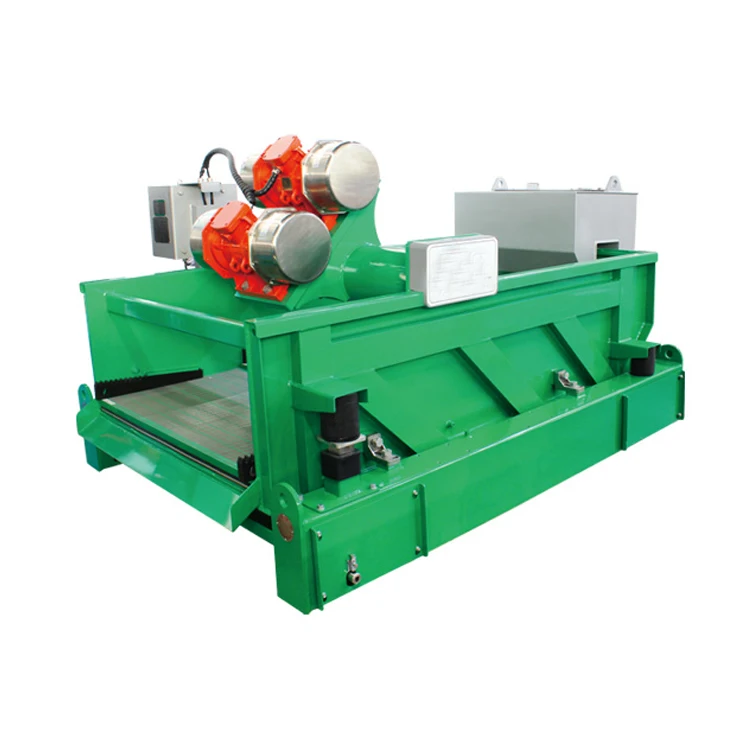

Advanced Technology Energy & Mineral Solids Control Oil Field Equipment Shale Shaker

Shale shaker is first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system. GN Solids Control can design double shakers and triplicate shakerson single skid according to clients’special requirements and also supply relevant connecting manifold, according to current industry situation, GN provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.

GNZS linear motion shale shaker absorbed advanced tech at home and abroad ,and integrated GN own design. GN complete series shale shaker can meet customers’ variable demand. Clients feedback proved the advantages of this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.

Features & Benefits of GN Linear Motion Shale Shaker:

Patented shale shaker deck angle adjustable while working, mechanical deck angle adjustment with reliable performance.

Patent tighten rubber sealing for shale shaker deck and screen, long life and easy replacement.

Shale shaker bottom deck made from Stainless Steel for long service life.

Heat treatment on complete shale shaker deck for High G force operation.

Pretensioned shale shaker screen for fast screen replacement

Famous Brand Vibration Motors : IEC Ex, ATEX and UL Certified

Electrical components: SIEMENS, Schneider Brand

Flexible feeding type including Weir Feed, Top Feed, and Hopper Feed for different applications.

Specifications

Model	GNZS752F-MDZF	GNZS703F-SDZF	GNZS703F-SHBF	GNZS594F-SHBF	GNZS706F-SHBF
Vibration Mode	Linear Motion
Capacity(m³/h)	45(200GPM)	120(528GPM)	140(616GPM)	140(616GPM)
Vibration Motor(Kw)	2×1.0	2×1.72	2×1.94
Screen Qty(Pcs)	2	3	4	6
Screen Size(mm)	750×900	700×1250×29	585×1165×40	Up:750×900 Down:700×1250
Screen Area(m²)	1.35	2.63	2.73	Up:2.03 Down:2.63
Adjustable G Force	≤7.5G	≤7.3G
Vibration Amplitude(mm)	4.14~5.96	4.04~5.82
Deck AngleRange	+2°	-1°~+5°
Feeding Type	Top Box Feeder	Weir Feeder
Weir Height(mm)	714	1060	895
EX Standard	ExdIIBt4 / IEC EX/ ATEX
Weight(Kg)	929	1665	1571	1624	1795
L×W×H(mm)	1816×1657×1083	2462×2007×1476	2744×1968×1435	2989×1968×1435	2744×1968×1435
Remarks	Above capacity only for reference, actual capacity will be various as per screen API No. and mud conditions

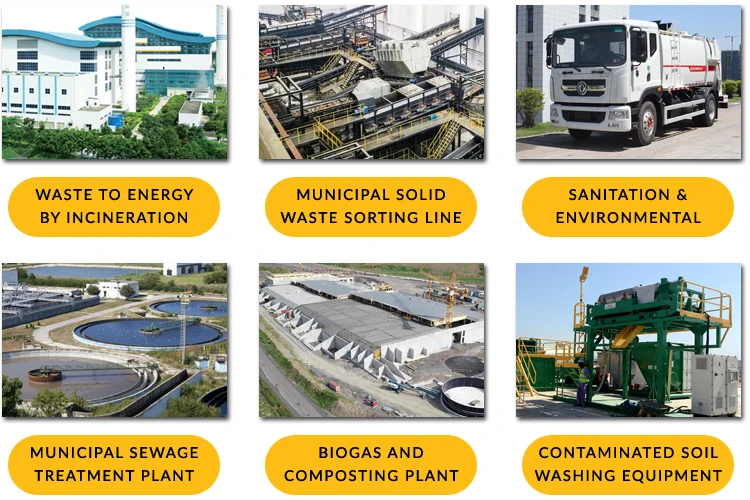

Product Range

About Us

"Best In Agnecy is trusted name in the trading industry specialized in

Environment Protection Projects"

We represent Famous Chinese companies and provide solutions to clients in African countries, The Middle East.

Our duty is to accompany clients in all stages of the projects, our main objective is the satisfaction of our customers and the realization of referential projects.
