Соединительная гайка для мебели рашпиль режущая вставная

Соединительная гайка для мебели рашпиль режущая вставная

Категория: Furniture Bolts >>>
Поставщик: WATANABE,PIPE,CO.,LTD.

Цена:11,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	14.51 $*	14.66 $*
Jul-16-2025	11.69 $*	11.72 $*
Jun-16-2025	14.60 $*	14.87 $*
May-16-2025	14.13 $*	14.36 $*
Apr-16-2025	11.74 $*	11.34 $*
Mar-16-2025	13.55 $*	13.99 $*
Feb-16-2025	13.39 $*	13.57 $*
Jan-16-2025	13.58 $*	13.37 $*

Характеристики

Product Description

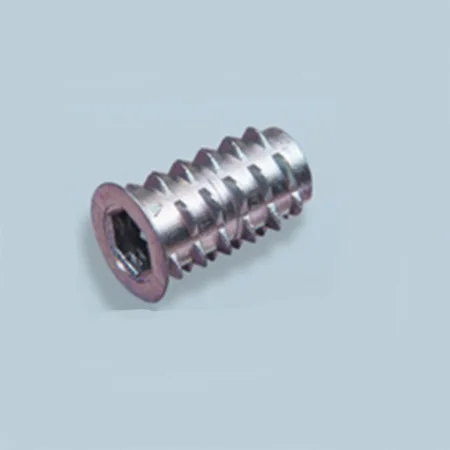

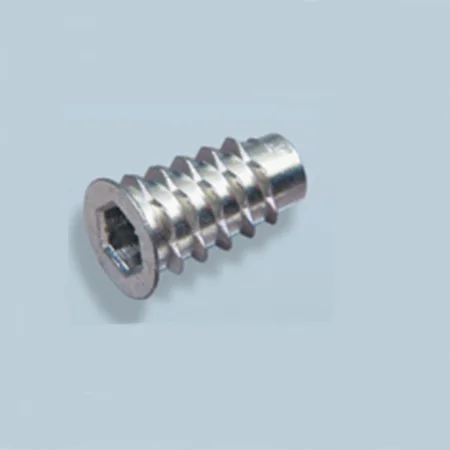

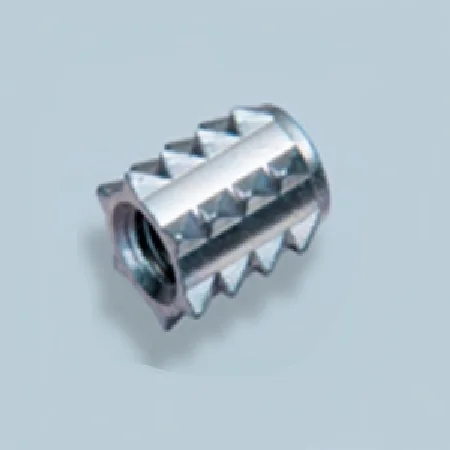

Rasp cut Nut

This nut is a insert nut and bolt. An embedded nut for use with furniture and carpentry. Insert and use it in places where a female screw cannot be created. It has many rasps so that it is good for an assembled furniture.

There are 2 types of Head; "with collar" and "without collar").

There are 2 types of installation method, too; "screwing" and "hitting with a hammer".

Nut with collar : The collar keep the nut from burying too deep.

Nut without collar : Nut is buried completely so the assembling goods get high adhesion.
Screwing : It is good to install on the soft lumber.

Hitting : It is easy to install. just hitting with a hummer.

Type A

D x L(mm)	Product No.	L	ℓ	φd2	φd3	Material	Hole size before threading	MOQ
M3x5.5	0013050X	5.5	3.5	6	4.5	Zinc alloy diecasting	4.1- 4.5	10,000x 4
M3x8.5	0013080X	8.5	4	6	4.5		4.1- 4.5	6	4.5			5,000x 4
M4x8	0014080X	8	5	8	6			5.6- 6.0				5,000x 4
M4x10	0014100X	10	5	8	6			5.6- 6.0	8	6			2,000x 6
M5x10	0015100X	10	6	10	7.5			7.1- 7.5	2,000x 5
M6x10	0016100X	10	7	12	9			8.6- 9.0	1,000x 5
M6x13	0016130X	13	7	12	9		7	8.6- 9.0	1,000x 5	12	9

How to use

1. Make a pilot hole in the lumber

2. Drive in this nut

3. Connect with bolt

Type B

D x L (mm)	Product No.	L	ℓ	h	φd1	φd2	φd3	Hole size before threading	MOQ
M3x 8	0023080X	8	5	1	8.5	6	4.5	4.1- 4.5	5,000x 4
M3x9.5	0023090X	9.5	6	1	8.5	6	4.5	4.1- 4.5	5,000x 4		10.5
M4x9.5	0024090X	9.5	6	10		1.5	10.5	8	6	5.6- 6	2,000x 6
M4x10	0024106Y	10	6.5		13								2,000x 4
M4x11.5	0024110X	11.5	7.5		10.5								2,000x 4
M5x10	0025100X	10	7	2	12.5	10	7.5	7.1-7.5	1,000x 6
M5x12	0025120X	12	8		12.5	10	7.5	7.1-7.5		16				1,000x 5
M6x10.5	0026100X	10.5	7.5			16	12	9	8.6-9	500x 8
M6x12.5	0026120X	12.5	8.5	2.5	14.5					500x 8
M6x15.5	0026150X	15.5	11	2.5	14.5					12.5				500x 6
M6x18	0026180X	18			0.3	12.5								500x 6
M8x13.5	0028130X	13.5			2.0	19	13	10	9.6-10	500x 4
M8x15.5	0028150X	15.5	9.5	1.5	13.5	19				500x 4
M8x16	0028160X	16	9.5		0.3	13.5							500x 5
M8x20.5	0028200X	20.5	16	0.7	25							300x 4

How to use

1. Make a pilot hole in the lumber

2. Drive in this nut
3. Connect with bolt

Type D

D x L(mm)	Product No.	L	ℓ	h	φd1	φd2	φd3	Hole size before threading	MOQ
M4x 20	0044200X	20	17	8.5	8	5.5	4	5.7-6	2,000x3
M5x 13	0045130X	13	10	11.5	11	6.5	5	7.7-8	1,000x5
M5x 20	0045200X	20	17	11.5	11		5	7.7-8		7	500x6
M6x 10	0046100X	10	7	12.5	12	8	6	8.7-9	1,000x5
M6x 13	0046130X	13	10							7.5	1,000x4
M6x 16	0046160X	16	13									500x6
M6x 20	0046200X	20	16.5									500x5
M6x 25	0046250X	25	21.5							8	500x4
M8x13	0048130X	13	9	14.5	13.5	9.5	8	11-11.3	500x6
M8x 25	0048250X	25	21	14.5	13.5	9.5	8	11-11.3				300x4
M10x13	0040130X	13	9	16	15.5	11	10	13-13.3	1200
