Упаковочная машина для зеленого чая жасмина с логотипом 50 г 80
- Категория: Packaging Machine >>>
- Поставщик: Foshan,Ocpack,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 21420.19 $* | 22491.69 $* |
| Aug-15-2025 | 21240.3 $* | 22302.82 $* |
| Jul-15-2025 | 17820.88 $* | 18711.87 $* |
| Jun-15-2025 | 20880.20 $* | 21924.43 $* |
| May-15-2025 | 18180.55 $* | 19089.78 $* |
| Apr-15-2025 | 20520.51 $* | 21546.34 $* |
| Mar-15-2025 | 20340.8 $* | 21357.70 $* |
| Feb-15-2025 | 20160.10 $* | 21168.57 $* |
| Jan-15-2025 | 19980.50 $* | 20979.90 $* |
Характеристики
Product Description
Machine Workflow

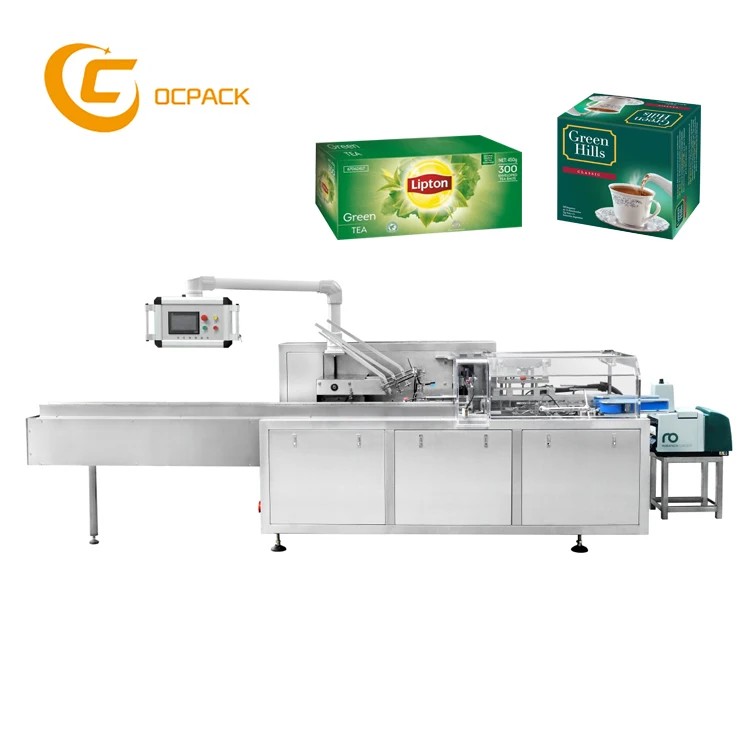

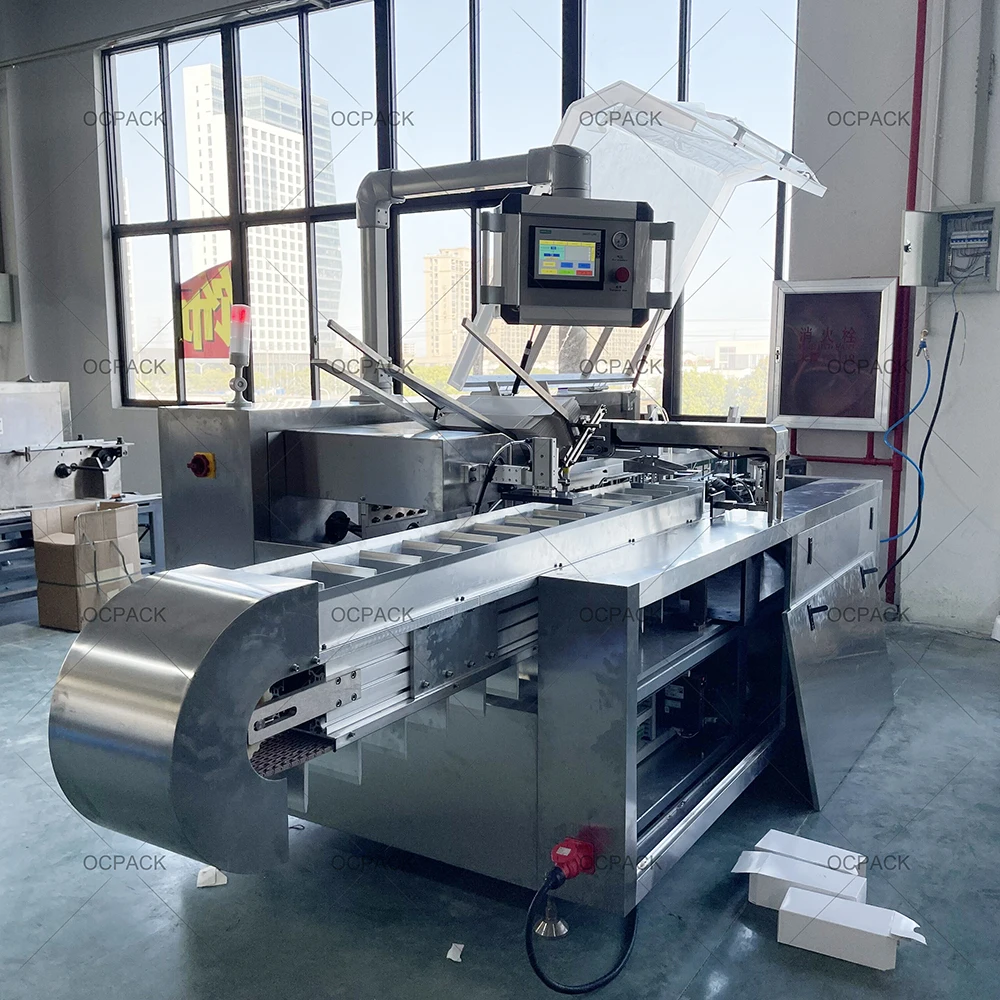

Machine simple introduction
The horizontal automatic cartoning machine is a high-tech product integrating light, electricity, gas and machine. Suitable for automatic cartoning of a variety of products. The working process is the transfer of articles; the carton is automatically opened and transported, the materials are automatically loaded into the carton; and the complicated packaging process such as the tongues at both ends is completed. The outside part of the machine is all made of high-quality stainless steel cover, and it is strictly designed according to the "GMP" standard of the pharmaceutical industry. The transmission part is designed with overload protection function, and there is an emergency stop device. The control system adopts the human-machine interface video screen to ensure the personal safety of the operator.
Specification | ||||||||
Machine type | Automatic carton boxes packaging machine | |||||||
Packing speed | 50-80 cartons/min | |||||||
Paper Quality Requirement | 250—400g/m2 | |||||||
Gas pressure | ≥0.6MPa | |||||||
Size Range | L(70-260) x W(30X150) x H(15-100) | |||||||
Gas consumption | 20m3/h | |||||||
Power Supply | 220V—380V 50Hz | |||||||
Main motor power | 1.5KW | |||||||
MACHINE DIMENSION | 3500X1200X1700mm | |||||||
Quality Show

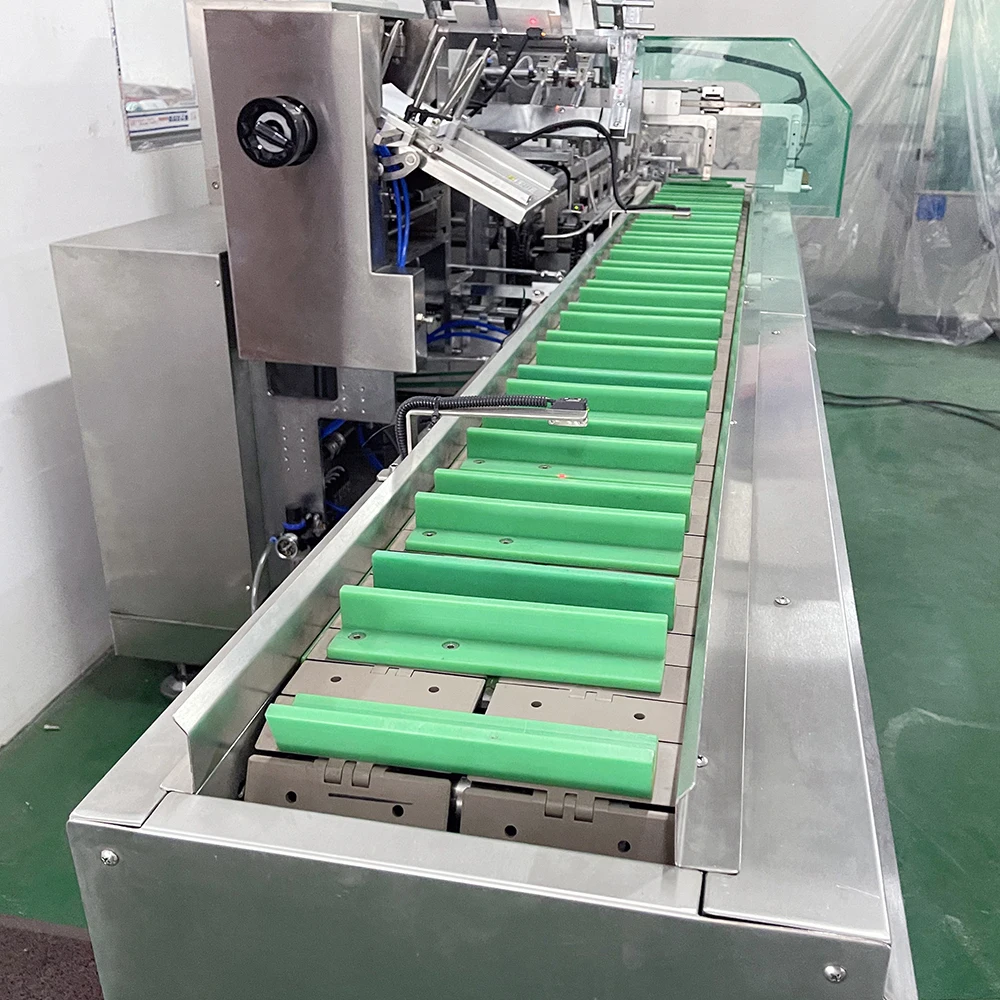

Product delivery conveyor
Automatic conveyor belt for delivery product ,according to the customer required ,can be customize the conveyor belt size.

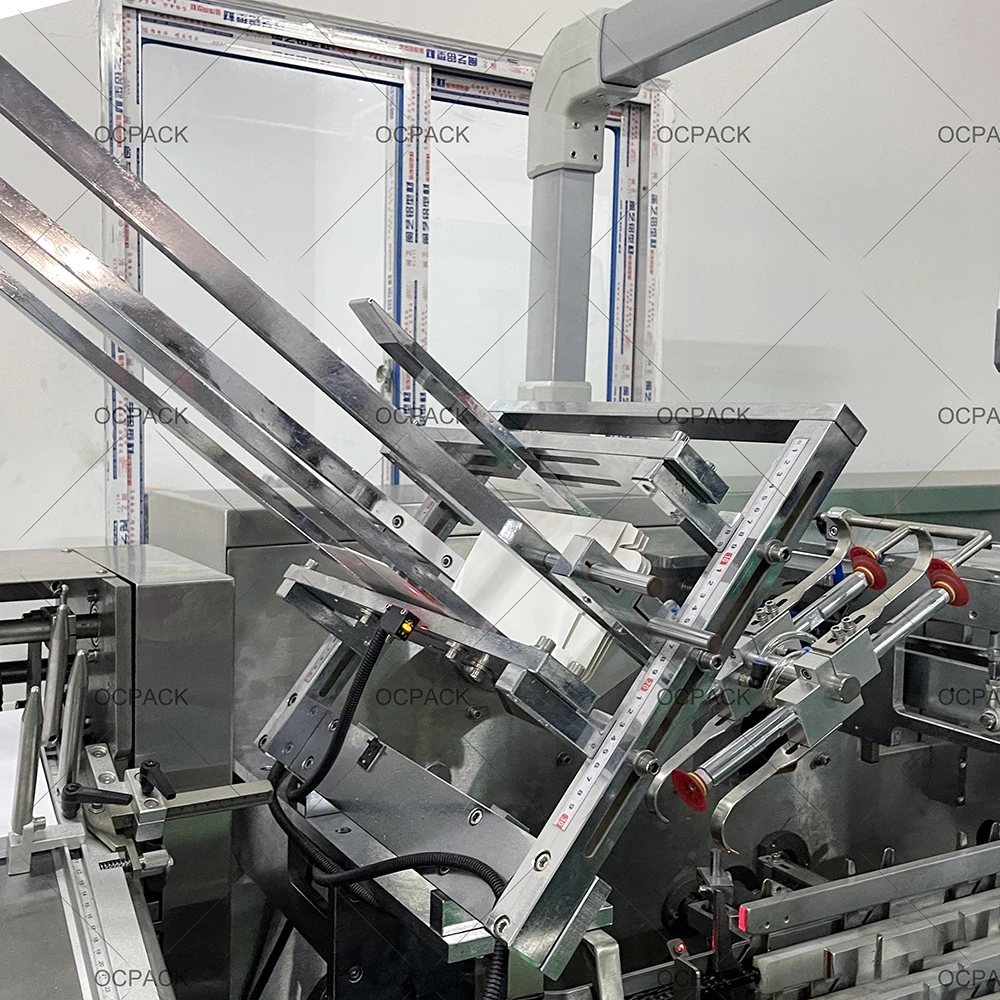

Boxes save device
Save boxes and open boxes for next step .The packaging range is large, the adjustment is convenient, and the rapid conversion can
be realized between various specifications and sizes.
be realized between various specifications and sizes.
Product feeding device
Automatic pushing the product into the boxes .When there is no product, or product is not in correct place, the machine will not push the product when it is idling. When the product is renewed to supply, it will automatically run again by itself. If the product enters the carton not properly, it will stop automatically, and there is main drive motor overload protection device, is safer and more reliable.

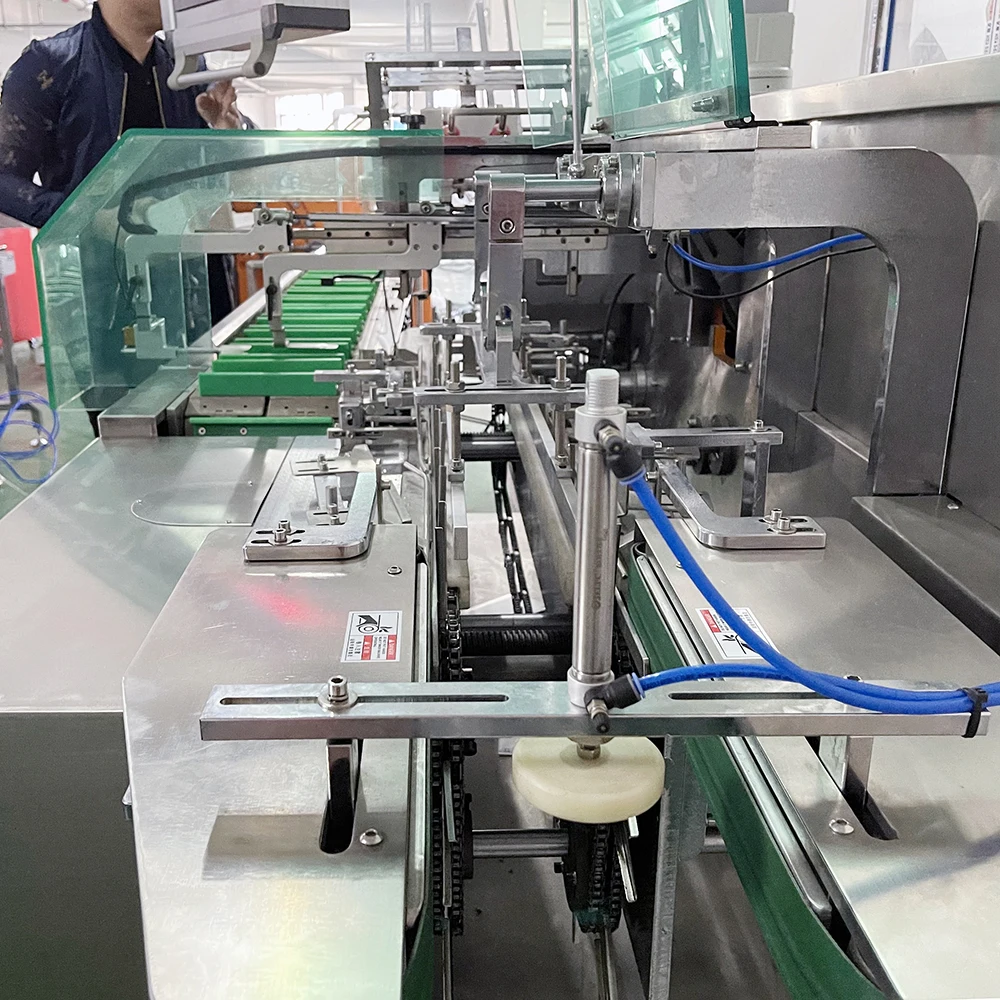

Close boxes device
After feeding the prouduct,next step will be close the each direction . According to the customer's requirements, the
hot melt glue machine can be equipped with hot melt glue spray sealing carton.
hot melt glue machine can be equipped with hot melt glue spray sealing carton.
Finished product conveyor
The machine finished box open,feeding,close,sealing all process will delivery the finished box to comes out and also can be connect with other machine to formation of automatic production line.

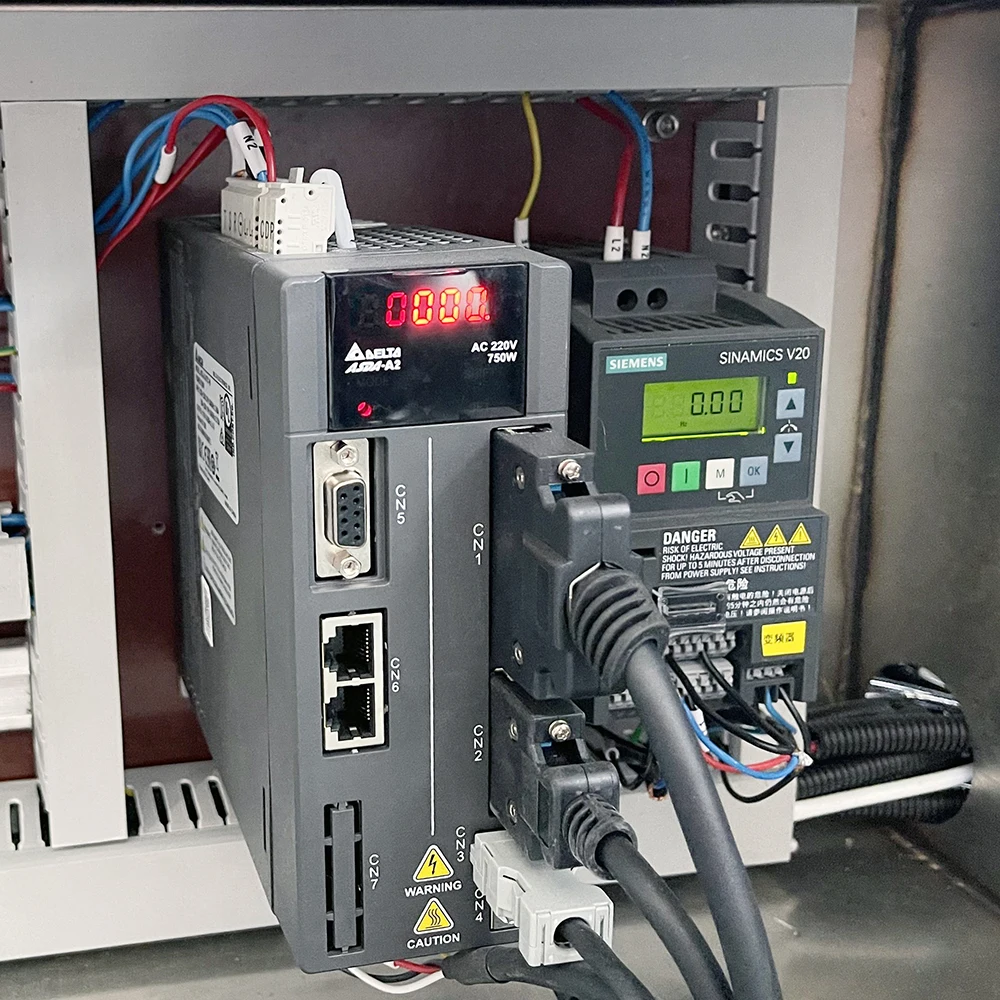

Touch screen control
Adopting servo / stepper motor and touch screen, PLC programmable control system, man-machine interface display operation is more clear and simple, high degree of automation, more humane.
Can be linked with aluminum-plastic packaging machine, pillow packaging machine, three-dimensional packaging machine, bottling line, filling machine, labeling machine, inkjet printer, online weighing instrument, other production lines and other equipment.
According to customer requirements, the use of upturned safety shield, easy to operate, beautiful appearance.
According to customer requirements, the use of upturned safety shield, easy to operate, beautiful appearance.
