Воздушная розовая изоляция AirLon/полиэтиленовая пена/XPS (экструдированный
- Категория: XPS Boards >>>
- Поставщик: GSAK,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.85 $* | 0.36 $* |
| Aug-16-2025 | 0.76 $* | 0.91 $* |
| Jul-16-2025 | 0.21 $* | 0.14 $* |
| Jun-16-2025 | 0.75 $* | 0.36 $* |
| May-16-2025 | 0.65 $* | 0.11 $* |
| Apr-16-2025 | 0.26 $* | 0.84 $* |
| Mar-16-2025 | 0.11 $* | 0.81 $* |
| Feb-16-2025 | 0.27 $* | 0.93 $* |
| Jan-16-2025 | 0.92 $* | 0.22 $* |
Характеристики
Product Description
Air Pink

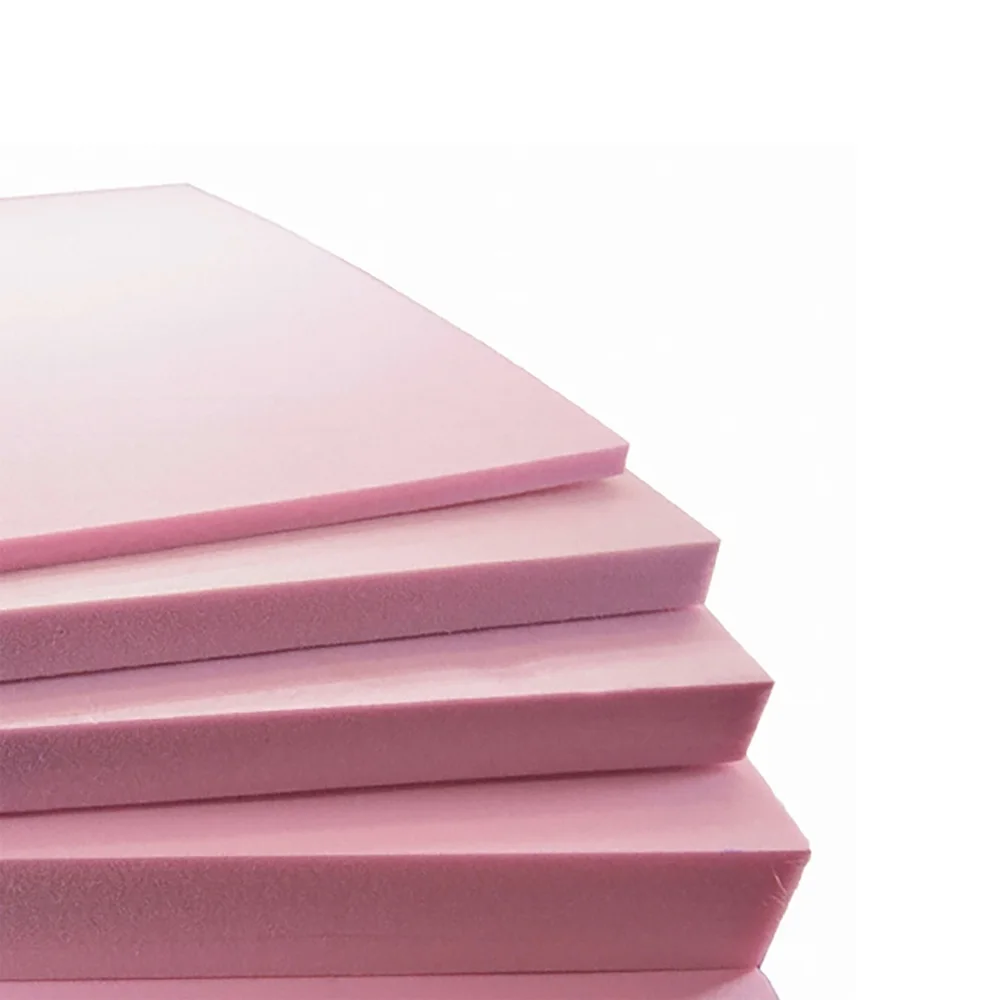

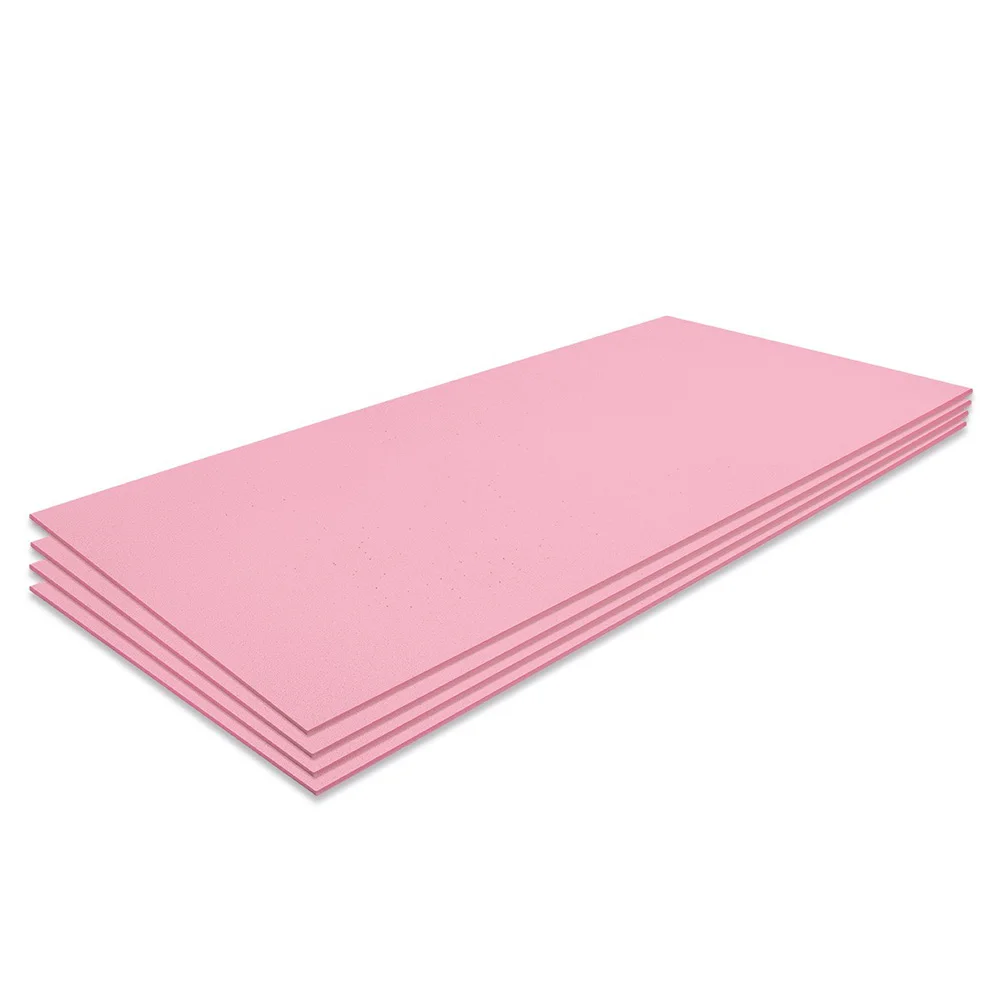

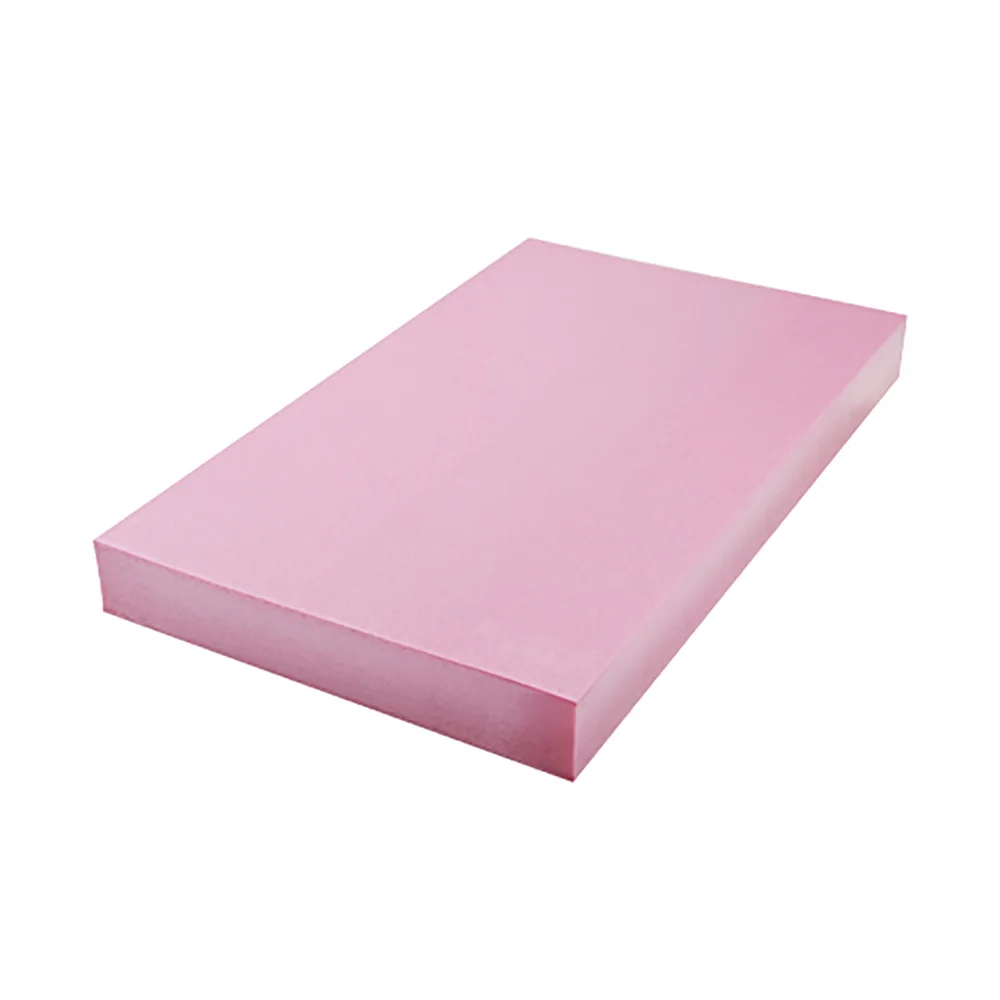

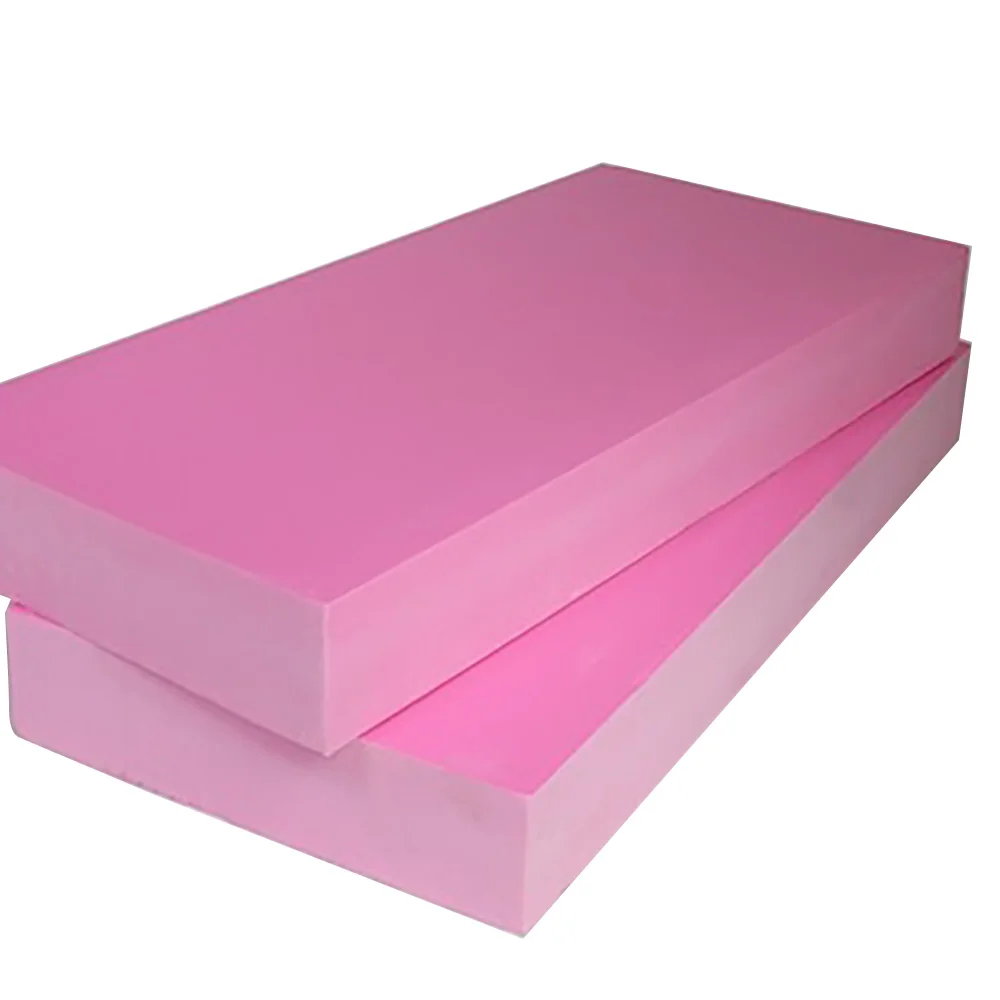

Air Pink is a extruded polystyrene foam insulation developed by Airlon, through its own research and development process. The excellent advantages of this product is that it has high performance like a
Air Pink is a extruded polystyrene foam insulation developed by Airlon, through its own research and development process. The excellent advantages of this product is that it has high performance like a
• Thermal Insulation Properties
• Self-Extinguishment
• Waterproof & Moisture Resistance
• Construction Ability
• Corrosion Resistance
• Eco Friendly
• Self-Extinguishment
• Waterproof & Moisture Resistance
• Construction Ability
• Corrosion Resistance
• Eco Friendly
Application
• Apartment, OfficeTel, other Building' Inner Wall, Out Wall, Rooftop
• Ice-Rink, Floor of Sport Center, Frozen Storage, Refrigerated Tower Cars
• Cattle Shed
• Apartment, OfficeTel, other Building' Inner Wall, Out Wall, Rooftop
• Ice-Rink, Floor of Sport Center, Frozen Storage, Refrigerated Tower Cars
• Cattle Shed
Properties
Only items in red square box are produced. (※ ↑ : Above / ↓ : Blow)
Only items in red square box are produced. (※ ↑ : Above / ↓ : Blow)
Construction Method of stacking in Double-Space(Between Wall)
the inner and outer wall.
• Stack the AIRPINK by securing it to the fixed liner that already buried. Avoid bending and crevice between AIRPINK boards.
• Tape the joints between the AIRPINK with a damp-proofing tape. Fill the gaps thoroughly with AIRPINK pieces and then tape them.
• Stack the outer wall with fixing it by buried wire
Construction Method of Dry Exterior Wall
• Hang the AIRPINK board on the anchor. At this time, be careful not to be bend the AIRPINK board, especially to make
sure that the joints between the AIRPINKs are adhered to.
• Hang a finish materials like an panels, marble, etc. on the anchor and stack them.
Construction Method by Bonding Adhesive (Composite Insulation Panel)
• Remove any dirt or blemish from the wall where the panel will be attached.
• Cut the panel to the fit the height and space of the wall.
• Attach the bond at intervals of 300mm with a diameter of about 50mm and a thickness of about 3~5cm.
• Attach the panel so that it is horizontal. At this time, a concrete nail is placed and fixed so that the bond can be
supported until it is completely hardened.
• Finish the seam with gypsum bond.
Construction Method of Roof Insulation (1)
• At this time, be careful not to widen the gap between the AIRPINK boards.
• Apply a moisture-proof tape between the AIRPINK boards.
• Construct waterproof(rubber) layer. Cast the concrete into the designed thickness and finish it.
Construction Method of Roof Insulation (2)
• Place the AIRPINK on the waterproof sheet
• At this time, be careful not to widen the gap between the AIRPINK boards.
• Apply a moisture-proof tape between the AIRPINK boards.
• Cast the concrete into the designed thickness and finish it.
Ice Rink Floor Construction
• Flatten the floor with mortar evenly on the concrete surface.
• Place a waterproof sheet on the mortar.
• Place the AIRPINK on the waterproof surface to fit the it's thickness.
• Place a waterproof sheet on the AIRPINK boards.
• Cast the mortar evenly on the waterproof sheet.
• Cast the lightweight concrete after plumb the cooling tube, according to designated plan and finish it.
Precautions for Construction
• This product can be used for heating and cooling at temperatures below 70℃.
• In case of exposure from heat waves and direct sunlight may cause discoloration or deformation of product.
• Do not store the product on the steel, closing a fire and heat-absorbing materials. This can also cause product
discoloration or deformation.
• When finishing interior materials, construct the fire protection or heat blocking walls together.
• Please consult our technical institute(R&D Laboratory) for other purpose other than the designated use.
⇒ a Shape of Assembly
When installing the product, it is installed in an edge shape to prevent heat loss caused by heat passage and leakage of the joint.
• Place the AIRPINK on the waterproof surface to fit the it's thickness.
• Place a waterproof sheet on the AIRPINK boards.
• Cast the mortar evenly on the waterproof sheet.
• Cast the lightweight concrete after plumb the cooling tube, according to designated plan and finish it.
Precautions for Construction
• This product can be used for heating and cooling at temperatures below 70℃.
• In case of exposure from heat waves and direct sunlight may cause discoloration or deformation of product.
• Do not store the product on the steel, closing a fire and heat-absorbing materials. This can also cause product
discoloration or deformation.
• When finishing interior materials, construct the fire protection or heat blocking walls together.
• Please consult our technical institute(R&D Laboratory) for other purpose other than the designated use.
⇒ a Shape of Assembly
When installing the product, it is installed in an edge shape to prevent heat loss caused by heat passage and leakage of the joint.
• Keep the product in a well-ventilated space without being affected by snow, rain or moisture and etc, and cover it with a tent (similar mat) when storing outside.
• To prevent damage, store it horizontally using a pallet, etc.
• Work inpairs to avoid damaging edges and surfaces during handling and transportation.
• Do not place heavy objects on the product, as this may cause product damage.
Warning
• Wear protective equipment such as eye protection, helmet, dustproof mask, gloves, etc. Dust inhalation can cause irritation in
the respiratory tract.
• If dust comes into direct contact with skin and eyes, do not rub and wash thoroughly with soap and water.
• Don't work on the product.
• If exposed to fire and high heat (artificial point: 370 ℃) it may be burned, so be careful.
• Don't use it as a riding stuff on water in summer, accidents may happen.
• During handling and construction, if any abnormalities occur in the body, seek medical advice from a doctor.
Certification
Quality Control System Certificate
KS Certificate
Government Agency : Korean Standards Association
The contents of certification : Extruded Polystyrene Foam
Korea Eco-Label
Government Agency : Korea Environmental Industry & Technology Institute
The contents of certification : Extruded Polystyrene Foam
Certificates and Test Report KCL(Korea Conformity Laboratories)
Quality Control System Certificate
Government Agency : Korean Standards Association
The contents of certification : Extruded Polystyrene Foam
Quality Test Report
Government Agency: Korea Quality Institute of Construction Industry
Cases
Company Profile
DaeSeung Industry
DaeSeung Industry is the specialized company that produces the insulation materials such as Polyethylene Foam Materials, XPS(Expandable Polystyrene Materials) and other functional insulation(Thermal reflective materials, Interior and high temperature performance materials) what are used primarily in construction industry.
