DB3006-GF 5V 12V 30*6 мм Мини центробежный воздухонагнетатель широкого спектра
- Категория: Other Ventilation Fans >>>
- Поставщик: ACTIVA,INC.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.70 $* | 0.15 $* |
| Aug-16-2025 | 0.9 $* | 0.8 $* |
| Jul-16-2025 | 0.22 $* | 0.0 $* |
| Jun-16-2025 | 0.57 $* | 0.48 $* |
| May-16-2025 | 0.38 $* | 0.71 $* |
| Apr-16-2025 | 0.77 $* | 0.69 $* |
| Mar-16-2025 | 0.43 $* | 0.52 $* |
| Feb-16-2025 | 0.59 $* | 0.45 $* |
| Jan-16-2025 | 0.55 $* | 0.96 $* |
Характеристики
Product Description

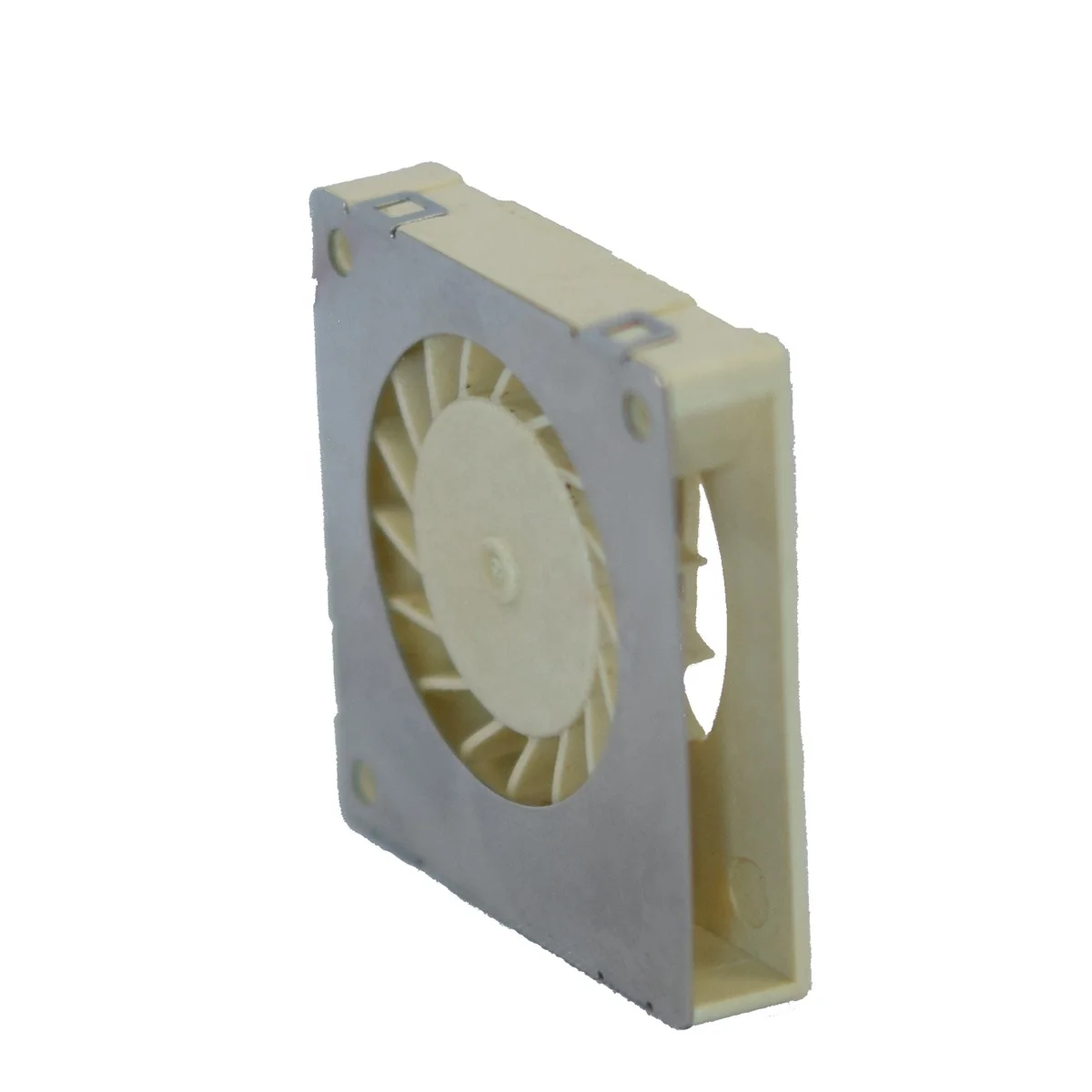

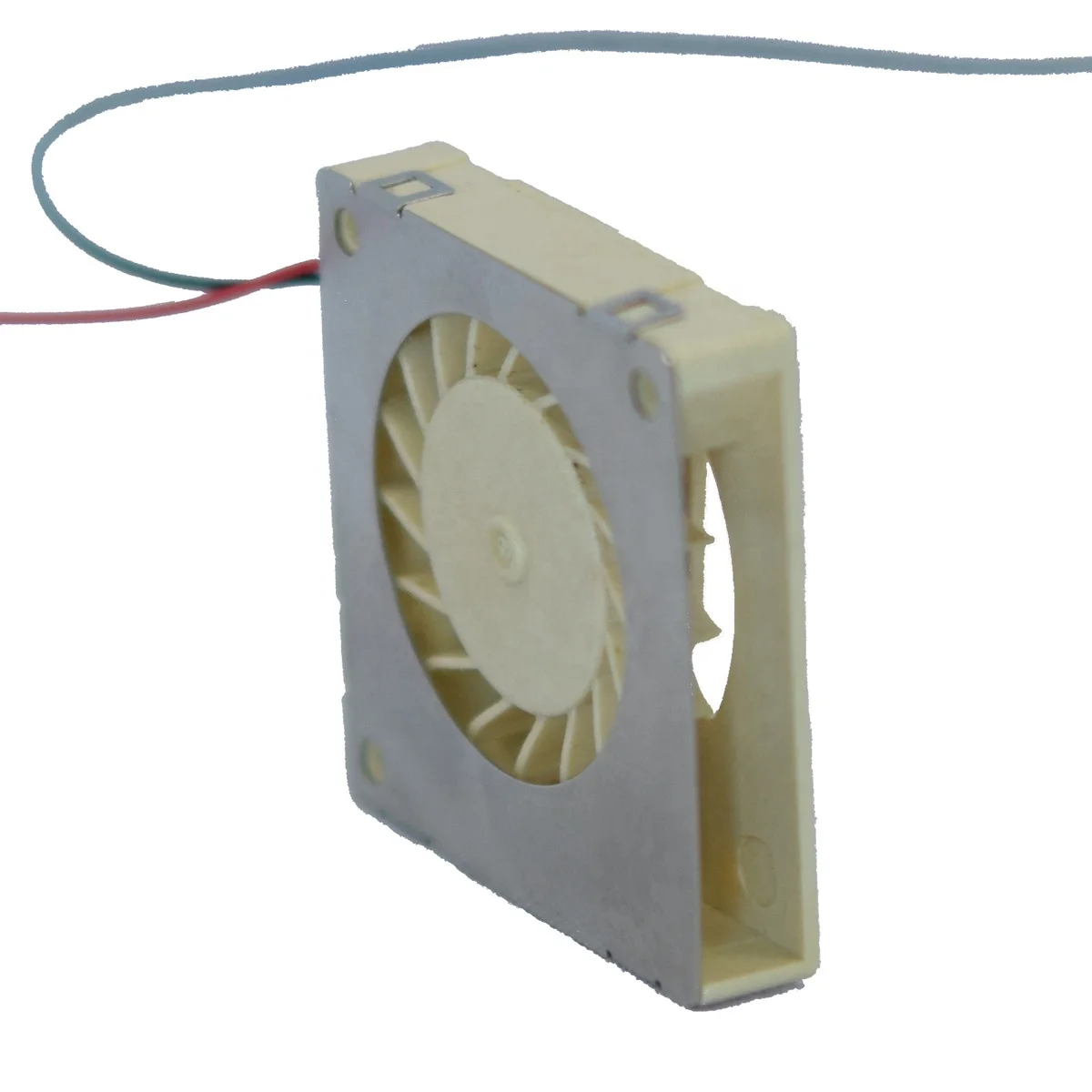

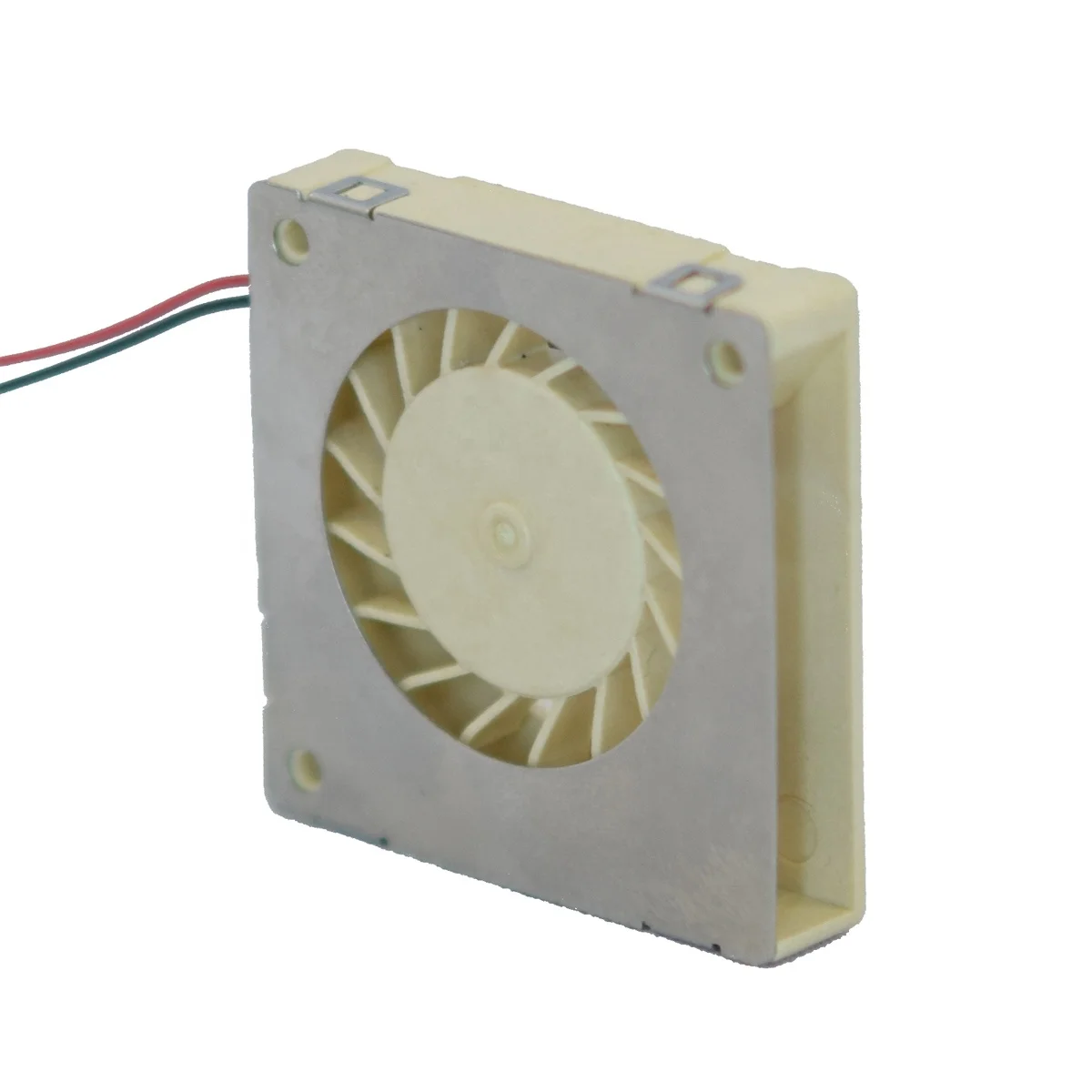

DB3006-GF 5V 12V 30*6mm Mini Blower Fan
| HOUSING: | Plastic (PBT 30%GF) |
| IMPELER: | Plastic (PBT 30%GF) |
| BEARING: | Sleeve |
| OPERATING TEMPERATURE: | -10℃ to +60℃ |
| INSULATION RESISTANCE: | 10M Ohms min.@ 500VDC |
| DIELECTRIC STRENGTH: | 5mA Max. at 500 VAC 60 Hz for 1 minute |
| WEIGHT: | 3.6g |
| ROHS COMPLIANCE: | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
Model No. | RATED | RATED | INPUT | SPEED | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A) | ||
| VOLTAGE | CURRENT | POWER | (RPM) | @1M | |||||
| (V) | (A) | (W) | inchH2O | mmH2O | CFM | m3/min | |||
| DB3006V5SLS-GF | 5 | 0.4 | 2 | 10000 | 0.124 | 3.14 | 1.46 | 0.041 | 29.2 |
| DB3006V5HS-GF | 5 | 0.3 | 1.5 | 8000 | 0.097 | 2.45 | 1.18 | 0.033 | 24.5 |
| DB3006V5MS-GF | 5 | 0.2 | 1 | 6000 | 0.072 | 1.83 | 0.95 | 0.027 | 19 |
| DB3006V5LS-GF | 5 | 0.15 | 0.75 | 4000 | 0.041 | 1.03 | 0.64 | 0.018 | 15.2 |
| DB3006V12SLS-GF | 12 | 0.25 | 3 | 10000 | 0.124 | 3.14 | 1.46 | 0.041 | 29.2 |
| DB3006V12HS-GF | 12 | 0.2 | 2.4 | 8000 | 0.097 | 2.45 | 1.18 | 0.033 | 24.5 |
| DB3006V12MS-GF | 12 | 0.15 | 1.8 | 6000 | 0.072 | 1.83 | 0.95 | 0.027 | 19 |
| DB3006V12LS-GF | 12 | 0.1 | 1.2 | 4000 | 0.041 | 1.03 | 0.64 | 0.018 | 15.2 |
Application for models :
For Pocket Projector,MID,UMPC,Smart book,CCTV,Portables GPS,Portable Gas/Particulate Detector,
Portable Plasma Generator,Mask/Goggle/Helmet/Ventilation and Defrosting
Company Information
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
Our factory :
Our Certificate :
